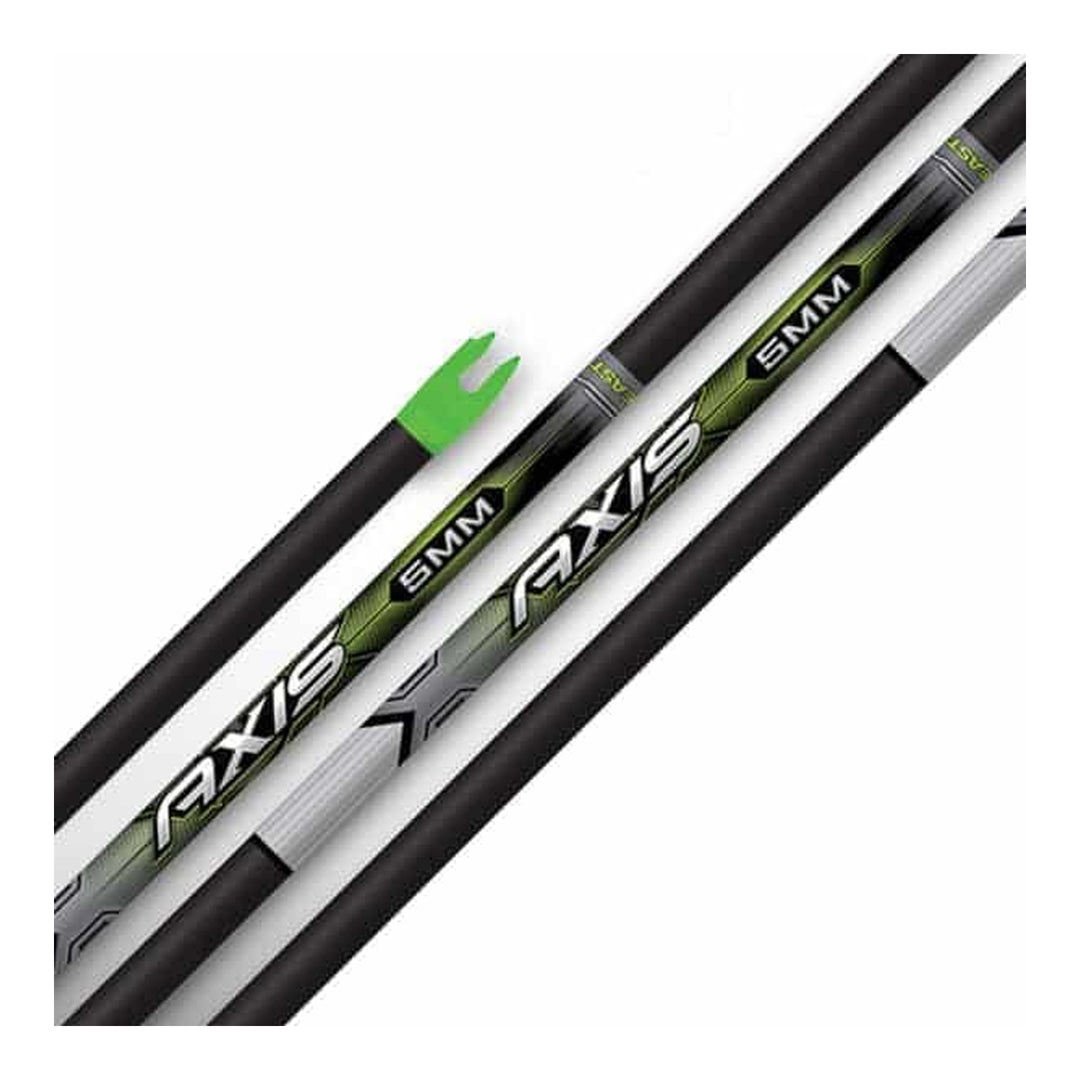

When precision and penetration matter most, the Easton Axis 5mm Shafts with HIT Insert - 12 Pack consistently rank among the most trusted bare shaft options available to serious bowhunters and competitive archers. Built around Easton's N-Fused ACU-Carbon construction, these shafts incorporate carbon nanotube technology woven throughout the carbon composite matrix, producing a shaft that is exceptionally stiff radially while remaining tunable along the spine axis. The 5mm slim profile is a meaningful advantage in the field, reducing wind drift and driving through hide, bone, and tissue with less resistance than larger diameter alternatives. Available across seven spine options from 260 through 700, the Axis 5mm caters to a wide range of bow setups and draw weights, making them equally at home on a 3D range or in the hunting field.

Easton Axis 5mm Shafts w/HIT Insert - 12 Pack Key Features

• N-Fused ACU-Carbon Construction: Shafts are built using carbon nanotube-infused composite fibers integrated throughout the carbon matrix. Carbon nanotubes measure approximately 18 times the tensile strength of Kevlar, delivering exceptional hoop strength and impact resistance while keeping the shaft lightweight and consistent.
• Match Grade Straightness Tolerance: Each shaft is held to a straightness tolerance of ±0.001 inches (±0.0254mm), meeting Match Grade standards. This level of precision directly translates to tighter groups and more repeatable arrow flight at hunting and target distances.
• 5mm Outer Diameter: The slim 5mm profile reduces aerodynamic drag and wind drift compared to larger diameter shafts, and aids in penetration on game by presenting a smaller surface area on entry. The inner diameter is 0.204 inches (5.18mm).
• Hidden Insert Technology (HIT System): Easton's HIT system seats the insert inside the shaft rather than over the outside, producing cleaner broadhead alignment and eliminating the collar step that can cause vane contact or flight inconsistencies. The included HIT inserts are 8-32 thread and weigh 16 grains. HIT inserts are one size fits all across Axis shaft sizes.
• Match Grade HIT Collars Included: Match Grade collars are pre-fitted to maintain concentricity at the insert-to-shaft junction, supporting consistent broadhead and field tip alignment across every arrow in the dozen.
• Weight Tolerance: Shafts are sorted to a weight consistency of ±2.0 grains across the dozen, ensuring matched arrow mass for consistent arrow-to-arrow performance. Spine-specific GPI ratings are as follows: 260 spine at 11.5 GPI, 340 spine at 9.5 GPI.
• Pre-Installed 5mm X Nocks: Shafts come with 5mm X Nocks already fitted, ready for fletching and final build-out without additional nock fitting steps.
• Available Spine Options: Offered in 260, 300, 340, 400, 500, 600, and 700 spine, covering compound setups from heavy draw hunting configurations through to lighter indoor and 3D target builds.
• Made in the USA: Easton Axis Match Grade shafts are manufactured in the United States as part of Easton's Match Grade Pro Shop Series.

Whether you're building a hunting dozen for this season's pursuit or dialling in a precise 3D setup, the Easton Axis 5mm shafts deliver the consistency, durability, and downrange performance that experienced archers expect from one of the most respected names in arrow manufacturing.
