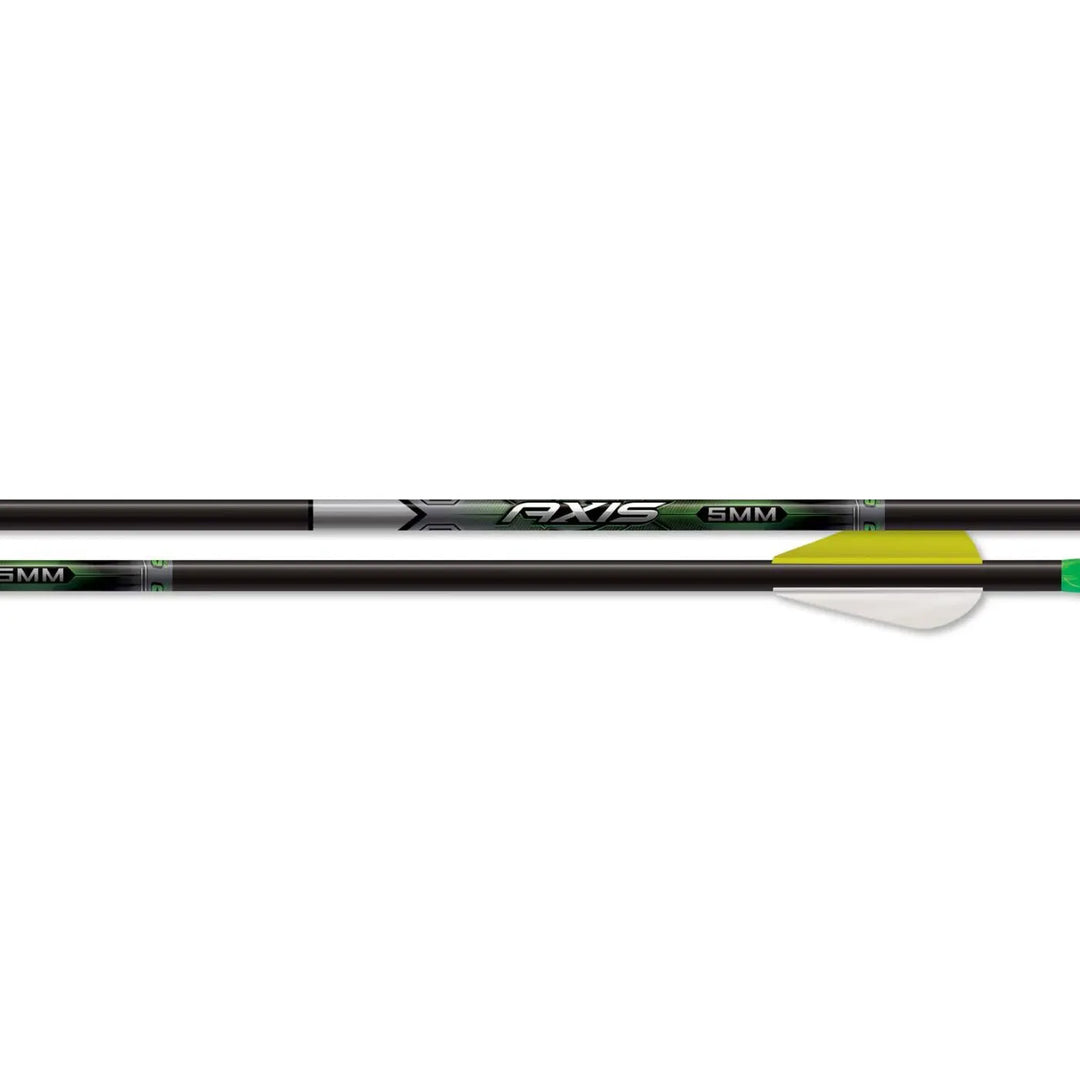

Easton Axis 5mm Shafts w/HIT Insert - 12 Packs

Size —

200 Spine

260 Spine

300 Spine

340 Spine

400 Spine

500 Spine

Quantity

Price

Members earn 280 points with this purchase.

Brand: Easton
Model: Axis 5mm
Product Type: Bare Arrow Shafts
Spine Rating: 260, 300, 340, 400, 500, 600, 700
Outer Diameter: .280 (260), .275 (300), .267 (340), .264 (400), .258 (500), .253 (600), .245 (700)
Inner Diameter: .204in
GPI (Grains Per Inch): 11.5 (260), 10.7 (300), 9.5 (340), 9.0 (400), 8.1 (500), 7.2 (600), 6.1 (700)
Straightness Tolerance: ± .003in
Length (Uncut): 34in (260), 32.5in (300), 32in (340), 31.5in (400), 31in (500), 30.5in (600), 31.5in (700)
Weight Tolerance: ± 2 grains
Material: Acu-Carbon Composite
Pack Quantity: 12 Pack
Technical Features: 5mm Micro Diameter, Hidden Insert Technology (HIT) System, N-Fused Carbon Construction, X Nocks included
Best Use: These reliable shafts are ideal for hunters pursuing trophy fallow deer or feral pigs across mixed terrain where deep penetration is required.

Proven in the field and trusted by bowhunters worldwide, the Easton Axis 5mm Shafts w/HIT Insert - 12 Pack deliver exceptional penetration, accuracy, and consistency in a micro-diameter carbon arrow. Designed using Easton’s advanced Acu-Carbon technology, these shafts provide precise spine alignment and weight matching for reliable performance shot after shot. The reduced 5mm diameter improves downrange efficiency by minimising wind drift and maximising kinetic energy transfer on impact. Whether you are chasing game or refining your setup, Axis shafts are built for dependable results in real-world conditions.

Easton Axis 5mm Shafts w/HIT Insert - 12 Pack Key Features

5mm Micro Diameter: Reduces wind drift and increases penetration by concentrating energy into a smaller frontal area.
Acu-Carbon Construction: Ensures consistent spine and weight alignment for improved accuracy.
Deep Penetration Performance: Delivers greater kinetic energy density compared to standard diameter arrows.
Factory HIT Insert System: Includes 5mm HIT inserts (16 grains) for a clean, internal insert setup.
Pre-Installed X Nocks: Ready to build with reliable nock alignment and fit.
Broadhead Optimised: Designed to improve broadhead flight and overall arrow stability.
Helical Fletching Compatibility: Supports enhanced arrow stabilisation and tuning options.
Wide Spine Range: Available from 700 through 200 to suit a variety of draw weights and setups.
Match Grade Tolerances: Straightness rated to ±.003” for consistent shot grouping.
Made in USA: Manufactured using premium materials and proven processes.

Included Components

5mm HIT Insert: Internal insert system (16 grains) for improved alignment and strength.
5mm X Nocks: Lightweight nocks (9 grains) pre-installed for convenience.

Spine & Size Guide

Spine	GPI	Deflection	Stock Length	Field Point	HIT Collar	OD (in)	Half Out Size
600	7.2	0.600	30.5"	17/64	#1	0.253	#1
500	8.1	0.500	31"	17/64	#1	0.258	#1
400	9.0	0.400	31.5"	17/64	#2	0.264	#2
340	9.5	0.340	32"	9/32	#3	0.267	#2
300	10.7	0.300	32.5"	9/32	#4	0.275	#2
260	11.5	0.260	34"	9/32	#5	0.280	#2
200	12.0	0.200	34"	9/32	#6	0.286	#2

The Easton Axis 5mm Shafts w/HIT Insert - 12 Pack are a proven choice for archers seeking maximum penetration, consistent accuracy, and a durable micro-diameter arrow platform for both hunting and target applications.
